The gearbox, or transmission, remains one of the most complex and expensive components of any modern vehicle. In 2026, as automotive technology integrates more sophisticated electronics and high-precision hydraulic systems, repair costs have seen a steady climb. This guide provides a detailed breakdown of what you can expect to pay for gearbox services, ranging from minor diagnostic checks to significant internal overhauls.
In this first half, we will cover preliminary diagnostics, essential maintenance, minor external repairs, and the cost of intermediate component replacements.
1. Preliminary Diagnostic and Inspection Fees
Before any physical work begins, a professional workshop will perform a diagnostic evaluation. In 2026, this is rarely just a “test drive.” It involves high-end scanning tools that interface with the Transmission Control Unit (TCU).
| Service Type | Estimated Cost (Low) | Estimated Cost (High) | Description |
| Basic OBD-II Scan | $75 | $150 | Reading error codes and identifying electronic faults. |
| Advanced Telemetry Diagnostic | $200 | $350 | Real-time data logging during a road test to find intermittent shifting issues. |
| Physical Inspection/Drop Pan | $150 | $300 | Removing the transmission pan to check for metal shavings or burnt fluid. |
Note: Many specialized workshops will waive the diagnostic fee if you proceed with a major repair (over $1,000) at their facility.
Best Gearbox Repair in Singapore
Gearbox repairs in Singapore can range from a $120 leak fix to a $6,500 luxury overhaul. At motoserv.sg, we provide the diagnostic expertise to ensure you aren’t overpaying for a replacement when a simple calibration or seal repair will do. Contact us for a transparent breakdown of your gearbox needs and get back on the road with confidence.
2. Essential Maintenance and Fluid Services
Preventative maintenance is the most effective way to avoid a $5,000 bill. Fluid technology has evolved significantly, with 2026-grade synthetic fluids offering better thermal stability but at a higher price point.
- Transmission Fluid Drain and Fill: This is a basic service where about 40–50% of the fluid is replaced. Expect to pay between $125 and $250. For luxury segments in Singapore, specialized packages are common. For example, a Mercedes-Benz ATF Gearbox Oil Servicing typically starts around $320, while a full transmission oil change for European luxury cars can range from $580 to $850. Owners of Japanese or Korean cars can expect to pay between $380 and $550 for similar high-quality fluid services.
- Full Transmission Flush: A machine-assisted process that replaces 100% of the fluid. This is more labor-intensive and requires more fluid. Costs typically range from $250 to $450.
- CVT Specific Fluid Service: Continuously Variable Transmissions (CVTs) require highly specific friction-modified oils. Due to the sensitivity of CVT belts, this service is usually priced between $180 and $350.
- Filter Replacement: Most modern automatics have internal filters. Replacing this along with the fluid usually adds $100 to $200 to the service cost.
3. Minor and External Repair Pricing
Not every “gearbox issue” requires taking the entire unit apart. Many leaks and sensor failures can be fixed while the transmission is still in the car.
Leaks, Seals, and Gaskets
| Component | Estimated Cost | Labor Intensity |
| Transmission Pan Gasket | $150 – $300 | Low; involves dropping the pan. |
| Output Shaft Seal | $250 – $500 | Medium; requires disconnecting the driveshaft. |
| Front Pump Seal | $400 – $700 | High; requires separating the engine and gearbox. |
| Cooler Line Repair | $200 – $400 | Low to Medium; involves replacing metal/rubber lines. |
Leak repairs are often brand-dependent due to the accessibility of the seals. Current market rates show that a BMW transmission fluid leak repair usually costs between $200 and $450, whereas more accessible systems like those in Suzuki models can be addressed for as little as $80 to $350.
Electronic Sensors and External Parts
Modern gearboxes rely on “eyes and ears” (sensors) to know when to shift.
- Speed Sensor Replacement: $150 – $300. Faulty sensors often cause “limp mode” where the car stays in 2nd or 3rd gear.
- Neutral Safety Switch: $200 – $450. If your car won’t start or recognize it’s in “Park,” this is the likely culprit.
- Transmission Mounts: $150 – $400. These are rubber-and-metal supports. If you feel a “thud” when shifting into Drive, it’s often a mount rather than the gears themselves.
4. Intermediate Repairs: Solenoids and Valve Bodies
As we move deeper into the gearbox, we encounter the Valve Body, often referred to as the “brain” of the transmission. It uses solenoids (electronic gates) to direct fluid to the correct gears.
- Single Solenoid Replacement: If a single gear is failing to engage, you may only need one solenoid. This typically costs $300 – $600, including labor and fluid top-up.
- Solenoid Pack/Block: Many manufacturers now bundle solenoids into a single block. Replacing the whole assembly ranges from $500 to $1,100.
- Valve Body Rebuild/Replacement: If the internal passages of the valve body are worn, a replacement is often necessary. This is a precision component, costing between $800 and $1,800.
- Mechatronic Unit (DSG/DCT): In the Singapore market, servicing the popular Volkswagen/Audi DSG DQ200 Mechatronic unit is relatively affordable, with maintenance packages starting at $360. However, a full replacement of the Mechatronic Unit (MU) for these models can jump to $1,500 – $2,500, while a high-end BMW ZF 8-Speed Mechatronic control unit can cost between $2,500 and $3,200.
5. Manual vs. Automatic: The Complexity Gap
The repair philosophy differs significantly between manual and automatic systems.
- Manual Gearbox Clutch Replacement: The most common “major” repair for manuals. In 2026, a standard clutch kit (disc, pressure plate, throw-out bearing) costs $800 – $1,600. If the Dual-Mass Flywheel (DMF) also needs replacing, add another $600 – $1,200.
- Torque Converter (Automatic Only): This component replaces the clutch in an automatic. If it fails (causing shuddering or slipping), replacement costs range from $600 to $1,500. The majority of this cost is labor, as the transmission must be removed from the car.
6. Major Internal Overhauls: The “Hard Parts”

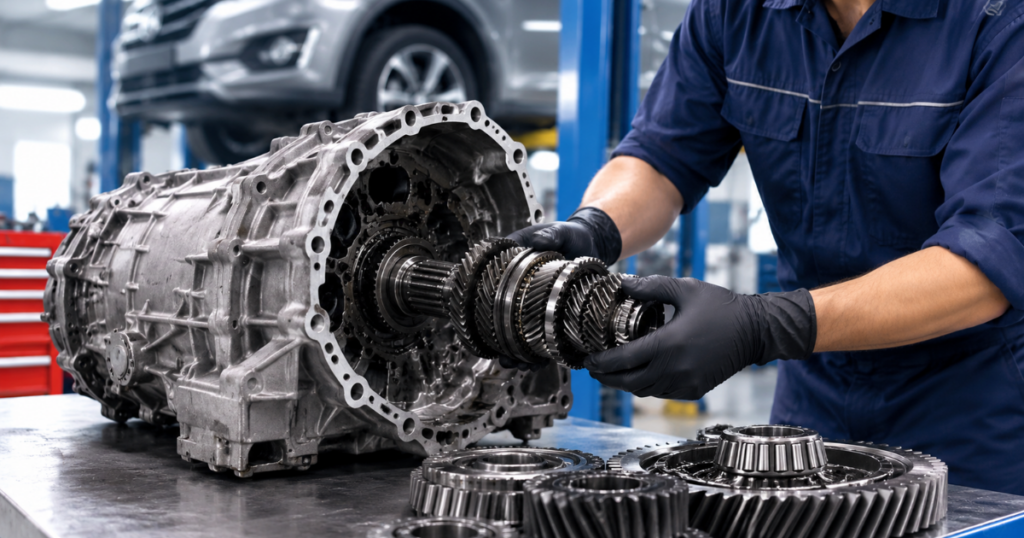

When internal components like gears, shafts, or clutches physically break or wear down, the transmission must be removed and completely disassembled. This is labor-intensive and requires a clean-room environment.
| Component / Service | Estimated Cost (SGD/USD) | Why it costs this much |
| Full Transmission Rebuild | $3,500 – $6,500 | Includes “Soft Parts” (seals, gaskets, clutches) and labor. |
| Planetary Gear Set | $800 – $1,500 | These are the actual gears. If one chips, it can destroy the whole unit. |
| Main Shaft Replacement | $600 – $1,200 | Requires total teardown to access the core of the gearbox. |
| Differential Repair (Internal) | $1,200 – $2,500 | Common in Front-Wheel Drive cars where the diff is inside the gearbox. |
The “Hard Part” Reality: If your gearbox has suffered a “catastrophic failure” (metal-on-metal grinding), the cost often exceeds the value of a reconditioned unit.
-
- Small Japanese/Korean Cars (e.g., Honda Fit/City): $1,800 – $3,000
- Large Japanese/Korean Cars (e.g., Toyota Harrier): $3,000 – $4,200
- Standard European Cars: $2,600 – $3,800
- Luxury Sedans (e.g., Audi A6 or Lexus LS Series): $3,800 – $6,500
7. CVT (Continuously Variable Transmission) Specifics
CVTs have become the standard for most Japanese and Korean commuters (Honda, Toyota, Nissan). Unlike traditional gearboxes, they use a steel belt and pulleys. In 2026, many CVTs are designed as “sealed units,” making them harder—and more expensive—to repair.
- CVT Belt/Chain Replacement: $1,200 – $2,200. If the belt snaps, it usually scars the pulleys, which leads to a total replacement.
- Pulley Refurbishment: $1,500 – $2,500. High-precision machining is required to ensure the belt doesn’t slip.
- CVT Total Replacement: $4,000 – $7,000. Because many workshops lack the specialized tools for CVT internals, they often suggest a full unit swap.
8. The High-Tech Frontier: DCT, Hybrid, and EV Gearboxes
As we shift toward electrification and high-performance dual-clutch systems, the “gearbox” is evolving into a more integrated electronic drive unit.
Dual-Clutch Transmissions (DCT/DSG)
These offer lightning-fast shifts but have two of everything (two clutches, two shafts).
- Dual-Clutch Pack Replacement: $1,800 – $3,500. A common wear item in performance cars like VW GTIs or Porsches.
- Mechatronic Calibration: $400 – $800. Sometimes the hardware is fine, but the software needs a high-level “re-learn” using manufacturer-specific tools.
Hybrid and Electric Vehicle (EV) Gearboxes
EVs don’t have “gears” in the traditional sense, but they do have a Reduction Gearbox.
- EV Reduction Gear Fluid Change: $200 – $400. Crucial for cooling the high-speed electric motor.
- Electric Drive Unit (EDU) Bearing Repair: $2,500 – $5,000. If the bearings inside an EV motor/gearbox unit fail, the labor is immense because of high-voltage safety protocols.
Owners of Honda Hybrids should note that hardware isn’t always the issue. An i-DCD Gearbox Calibration—a necessary software-based adjustment—is a common maintenance item in Singapore and typically costs between $120 and $248.
9. Replacement Options: New vs. Remanufactured vs. Used
If a repair is too costly, you have three main paths for replacement.
- Brand New (OEM): Straight from the manufacturer.
- Cost: $6,000 – $12,000+.
- Pros: 100% reliability, longest warranty (usually 2–3 years).
- Remanufactured: A used unit that has been stripped, cleaned, and rebuilt to factory specs with all new wear parts.
- Cost: $3,500 – $5,500.
- Pros: Often the best “bang for buck” for cars 5–10 years old.
- Used / “Half-Cut” (Scrapyard): A unit taken from a wrecked or decommissioned car.
- Cost: $1,000 – $2,500.
- Pros: Cheapest option.
- Cons: High risk. You don’t know the history, and warranty is usually only 30 days.
10. Labor Rates and Timeframes
In a market like Singapore, labor is a significant portion of the bill due to high overheads and the specialized nature of the work.
- Hourly Rate: Expect $120 – $250 per hour at specialized transmission shops.
- Removal and Installation (R&I): Just taking the gearbox out and putting it back in usually takes 8–12 hours of labor ($1,000 – $2,000).
- Turnaround Time:
- Fluid Service: 2–4 hours.
- Solenoid Repair: 1–2 days.
- Full Rebuild: 5–10 business days (depending on parts availability).
11. The Financial Decision Matrix: Repair or Replace?
Before signing a $5,000 work order, ask yourself these three questions:
- The 50% Rule: If the repair cost is more than 50% of the car’s current market value (especially relevant with Singapore’s COE system), it might be time to scrap or trade in.
- The “While You’re In There” Factor: If you are paying $1,500 in labor to pull the gearbox, always replace the Rear Main Seal of the engine and the Torque Converter. Spending an extra $500 now prevents a $1,500 labor bill later.
- Warranty Depth: Does the shop offer a “parts and labor” warranty? If they only warrant the parts, you’ll be stuck paying the labor again if the repair fails.
Summary Table: Total Estimated Costs (All-In)
| Repair Level | Typical Cost Range | Best For |
| Level 1: Maintenance | $200 – $500 | Cars with 60k–100k km showing minor shift lag. |
| Level 2: Electronic | $600 – $1,800 | Cars with “Check Engine” lights but no mechanical noise. |
| Level 3: Mechanical | $2,500 – $4,500 | Slipping gears, burnt smell, or heavy vibrations. |
| Level 4: Replacement | $5,000 – $9,000 | Total failure or high-mileage CVTs/DSGs. |
Don’t let transmission issues compromise your safety or your wallet. Contact us today for a precise diagnostic and a transparent, no-obligation quote from our specialist team. Book your appointment now to keep your vehicle running smoothly and avoid costly future repairs.
